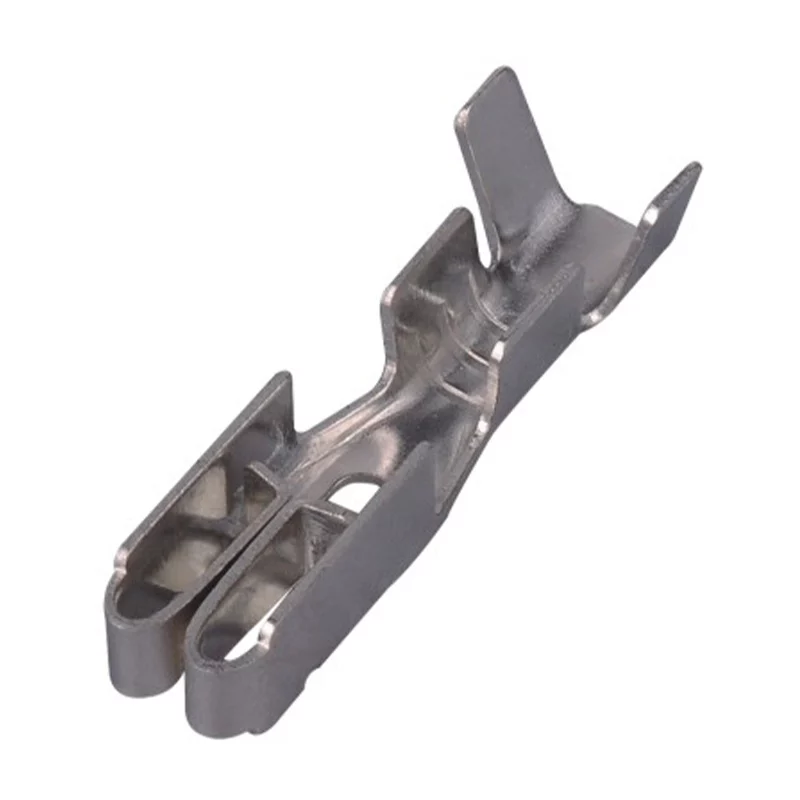

Description:Piece
Material:H65
Surface treatment:Bright tin plating
Applicablewire（mm²）:1.0-1.5
Thickness:0.4(mm)
Minimum packing:500
| Part No. | BX621A | BX621B | BX621C |
| Description | Piece | ||
| Material | H65 | ||
| Surface treatment | Bright tin plating | ||
| Applicablewire（mm²） | 0.5-1.0 | 1.0-1.5 | 2.5-3.0 |
| Thickness | 0.4(mm) | ||
| Minimum packing | 500 | ||
Main technical parameters
|
Application |
Automotive |
|
Place of Origin |
Zhejiang,China |
|
Brand Name |
ST |
|
Material |
Brass |
|
Plating |
Tin |
|
Color |
As the picture |
|
Production Process |
Stamping |
|
Installation style |
Wire to wire |
|
Operating Voltage |
12 (Reference Value) |
|
Contact Resistance |
5m Ω Max |
|
Operating Temperature Range |
-40℃~120℃ |
|
Sample |
Free |
|
Packaging Quantity |
Loose/Reel,Carton |
|
Size |
Standard Size |
|
R&D Ability |
Open New Molds According To Your Samples Or Drawings,We Can Supply Wiring Harness Products Also.0EM And ODM Are Available |
|
Serivce: |
ODM/OEM |
|
Certification |
TUV,T/S16949,ISO14001 system and RoHS. |
|
Payment |
100% T/T |
|
Company Type |
Factory |
The company specializes in the development and production fuse boxes, battery terminals, ring terminals, connectors, ultrasonic welding terminals and other more than 10,000 products
